NOVOL GRAVIT 630 is a versatile polyurethane adhesive sealant for durable sealing of body panels, sheet metal joints and welded seams. It forms a strong, flexible, water-resistant and weather-resistant layer that also provides sound-deadening and vibration-damping properties. Easy application and overcoating after 1–2 hours make it a practical choice for professional body repair and refinishing work.

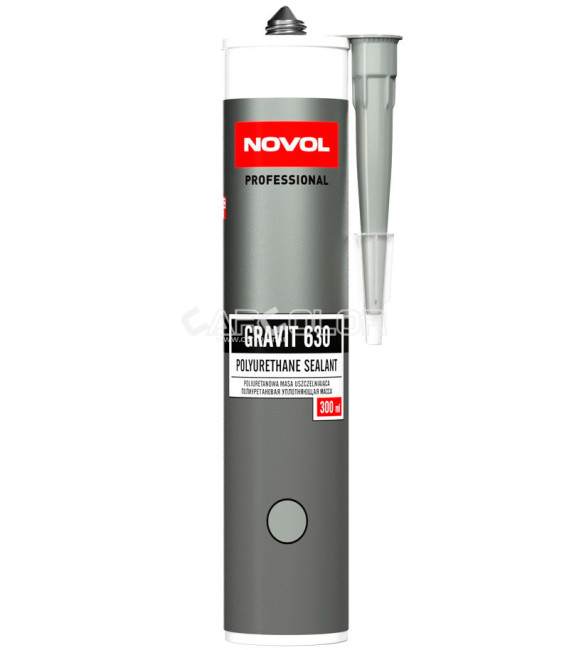

NOVOL GRAVIT 630 Polyurethane Adhesive Sealant
NOVOL GRAVIT 630 is a universal one-component polyurethane adhesive sealant designed for durable sealing of body panel joints, welded seams and structural connections. The product cures by reacting with moisture in the ambient air and forms a strong, flexible protective layer.
GRAVIT 630 works as both an adhesive and a sealant, making it suitable for sheet metal joints, fusion-welded and pressure-welded seams, drains, light housings, body roofs, window glass areas and other automotive body parts.
Once cured, the material creates a flexible, water-resistant and weather-resistant coating. It does not shrink or crack and also provides sound-deadening and vibration-damping properties. It can be applied easily with a hand or pneumatic sealant gun.
Depending on the applied layer thickness, the product can be overcoated after 1–2 hours, making it practical for professional body repair and refinishing workflows.
Main benefits
- Universal polyurethane adhesive sealant
- Efficient sealing of panel joints and welded seams
- Easy application with a hand or pneumatic sealant gun
- Forms a strong and flexible protective coating
- Does not shrink or crack after curing
- Water-resistant and weather-resistant once cured
- Provides sound-deadening and vibration-damping properties
- Excellent adhesion to different substrates
- Cures under the influence of airborne moisture
- Can be overcoated after 1–2 hours, depending on layer thickness
- Recommended for professional body repair and refinishing work
Product information
| Product type | Polyurethane adhesive sealant |
| System | One-component, moisture-curing polyurethane compound |
| Application | Sealing body panel joints, welded seams and structural connections |
| Colours | Black, grey, white |
| Application temperature | +5 °C to +40 °C |
| Overcoating | After 1–2 hours, depending on layer thickness |
| Heat resistance once cured | -40 °C to +100 °C |
| VOC content | 93 g/l |
| Use | For professional use only |
Application areas
| Application point | Purpose |
|---|---|
| Sheet metal joints | Flexible and durable sealing of panel connections |
| Welded seams | Sealing of fusion-welded and pressure-welded areas |
| Drains | Sealing of drainage areas on body structures |
| Light housings | Sealing around lighting units and related mounting areas |
| Body roofs | Sealing of roof panels and connected body areas |
| Window glass areas | Sealing tasks around glass and window areas |
| Other body parts | Bonding, sealing, sound-deadening and vibration-damping applications |
Adhesion to different substrates
GRAVIT 630 adheres extremely well to various substrates, making it suitable for different body repair and workshop applications.
| Substrate | Note |
|---|---|
| Untreated sheet metal | Apply to a clean, dry and degreased surface |
| Paint-coated sheet metal | Suitable for body surfaces with existing coatings |
| Glass | Suitable for sealing tasks around glass areas |
| Concrete | Can also be used in selected workshop or industrial applications |
| Timber | Suitable on properly prepared timber surfaces |
| Ceramic materials | Can be applied to clean and dry ceramic surfaces |
Surface preparation
- Remove all rust before application.
- The surface must be clean, dry and degreased.
- Loose, poorly adhering or contaminated layers must be removed.
- A test application is recommended on the selected substrate before use.
Application
| Before use | Unscrew the applicator and pierce the aluminium sealing membrane |
| Applicator preparation | Trim the applicator tip to obtain the required extrusion diameter |
| Application method | Apply by hand or with a pneumatic gun |
| Recommended application temperature | +5 °C to +40 °C |
| Curing method | Cures by reacting with moisture in the ambient air |
Drying and overcoating
| Process | Time / value | Condition |
|---|---|---|
| Surface dryness | 60 minutes | At 20 °C and 55% relative humidity |
| Overcoating | 1–2 hours | Depending on layer thickness |
| Average overcoating time | approx. 1.5 h / 20 °C | Depending on applied layer thickness |
| Full curing | 24 hours | At 3–4 mm thickness, 20 °C and 55% relative humidity |
Overcoating and compatibility
- The product can be used under any primer or acrylic coating.
- Depending on layer thickness, it can be overcoated after 1–2 hours.
- The cured sealant is water-resistant and weather-resistant.
- Do not overcoat GRAVIT 630 with any anti-corrosion wax.
Equipment cleaning
Clean tools with THIN 850 acrylic thinner or NC solvent.
Storage and shelf life
Store in a cool, dry room, away from sources of fire and heat. Avoid direct exposure to sunlight.
| Shelf life | 12 months at 20 °C |
| Storage | Store in a dry, cool place, protected from sunlight, heat and ignition sources |
Safety and important notes
- Read the safety data sheet before use.
- The product is intended for professional use only.
- A test application is recommended on the selected surface before use.
- The surface must be clean, dry, degreased and free from rust.
- Do not overcoat with anti-corrosion wax.
- Manufacturer’s instructions, workplace safety rules and waste disposal regulations must always be followed.
