IWATA WS Primer Professional Spray Gun for Filler Application (1.8 mm)

IWATA WS Primer Professional Spray Gun for Filler Application (1.8 mm)

The IWATA WS Primer is Anest Iwata’s first professional spray gun developed specifically for primer applications, optimized for filler application. It’s the perfect choice when OEM-quality finishes and a fast, efficient workflow with minimal post-processing are required.

The advanced Split Nozzle™ technology ensures precise and consistent atomization even at low pressure, while significantly reducing material consumption. The spray gun's ergonomic design and hard-anodized body provide comfort and durability even during intensive use.

Material Savings – More Efficient, Less Waste

Using the IWATA WS Primer not only improves the final surface quality, but also reduces material usage significantly. Thanks to its Split Nozzle™ technology, paint is applied exactly where it’s needed – with minimal waste and maximum efficiency.

Based on user experience, 30–40% material savings can be achieved compared to general-purpose spray guns, and even when compared to other professional tools, it still offers 10–15% more economical usage. This translates into cost-effective operation and faster return on investment for any body shop.

Main Features

• Split Nozzle™ system – exceptional atomization and smooth, even surface finishes.
• Supports two workflows – optimized versions for both Filler and Wet-on-Wet primer applications.
• Fast, efficient spraying – reduced post-processing, time and material savings.
• Self-adjusting needle packing – easy maintenance and precise operation.
• Durable and easy-to-clean construction – hard-anodized body resists chemicals and wear.
• Form-fitting trigger design – quick, one-handed adjustment with hex key.

Specifications

• Weight: 380 g (without cup)
• Working pressure: 2.0 bar
• Air consumption: 370 l/min
• Spray pattern width: 235 mm
• Nozzle size: 1.8 mm
• Air connection: G1/4" M
• Fluid connection: G1/4" F
• Application: For fillers

Package Includes

• 1 x IWATA WS Primer Spray Gun (with 1.8 mm nozzle)
• 1 x Gravity cup
• User manual
• Service tools

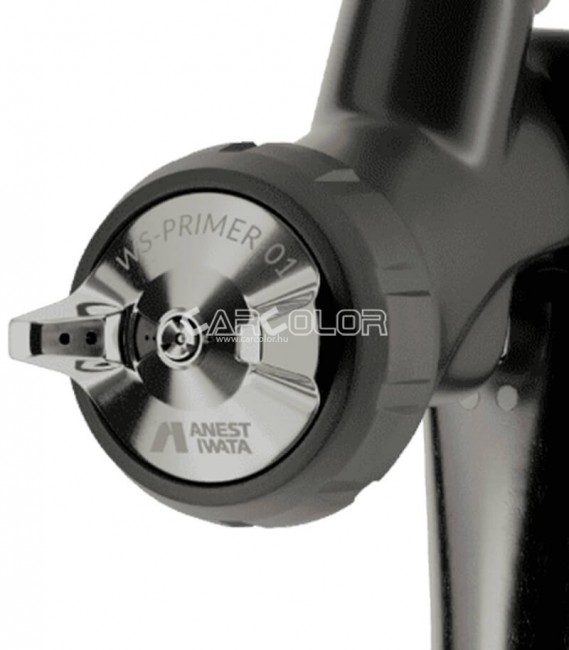

Split Nozzle™ Technology

Anest Iwata’s unique Split Nozzle™ system channels airflow through three dedicated slots, ensuring exceptional atomization even at low pressure. The flat, oval spray pattern guarantees flawless surface coverage while significantly reducing material waste.

Perfect results every time – no gimmicks, just technology.

---

Self-adjusting Needle Seal

Engineers completely redesigned the needle sealing system – it adjusts automatically, eliminating the need for manual fine-tuning. This not only ensures faster maintenance but also extends the lifespan of the component.

Easier operation – flawless performance every time.

---

“Bulletproof” Air Valve

The newly designed aluminum air valve is virtually indestructible. Its solvent-resistant O-ring and inverted design prevent overtightening and minimize wear over time.

Durable, reliable, and built to last.

---

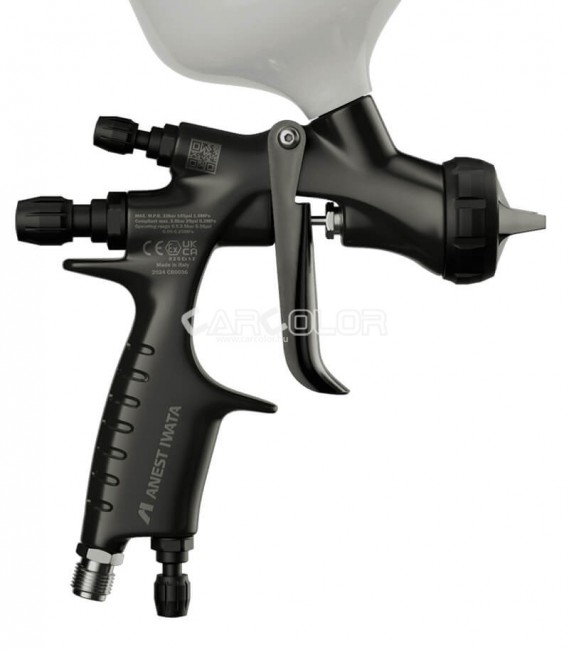

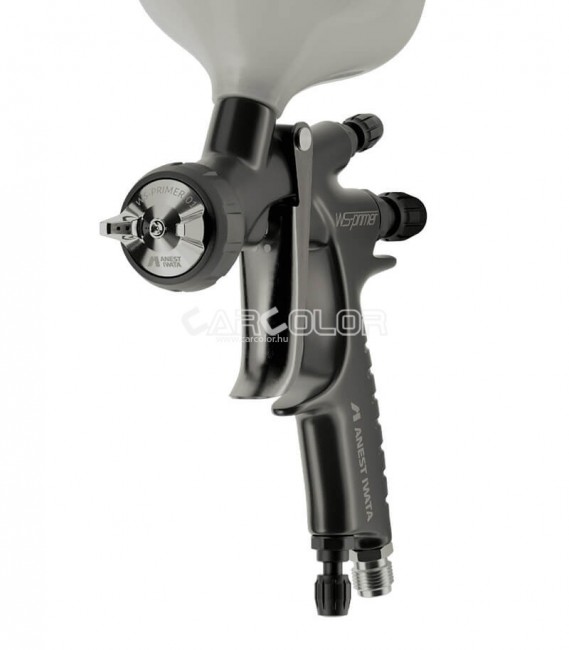

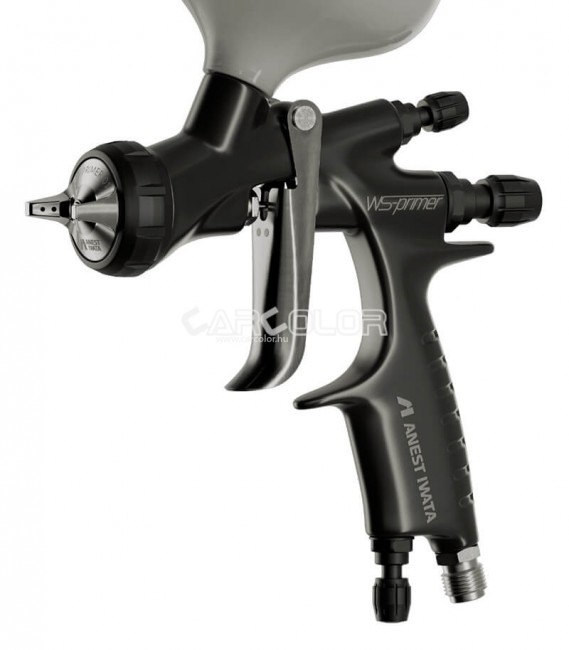

Ergonomic Design & Hard-Anodized Body

The WS-Primer spray gun was engineered for optimal comfort and balance. Its perfect weight distribution and durable, easy-to-clean hard-anodized surface deliver a professional-level experience—even during long work sessions.

Durable, lightweight, and a perfect fit – just as a true professional tool should be.

---
