Spectral UNDER 335 is a universal 2K acrylic filler primer designed for workshops looking for a reliable, versatile and easy-to-use primer for everyday refinishing work. Its good filling properties, easy sanding, smooth surface finish and multiple application versions make it an efficient choice from small spot repairs to larger surface preparation jobs.

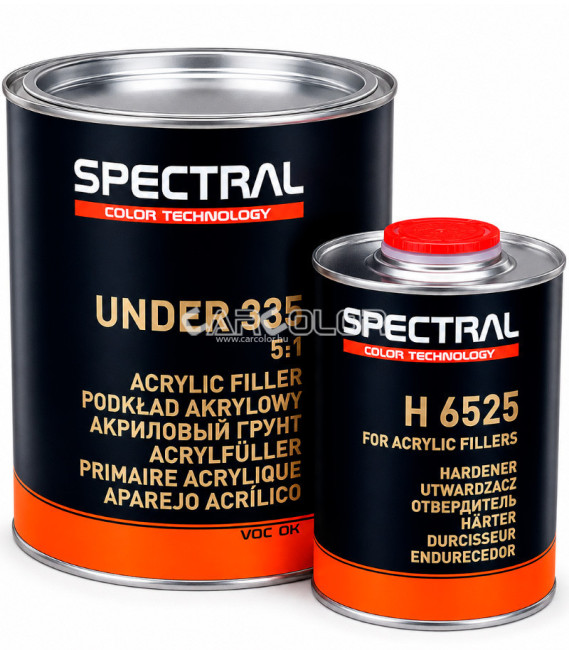

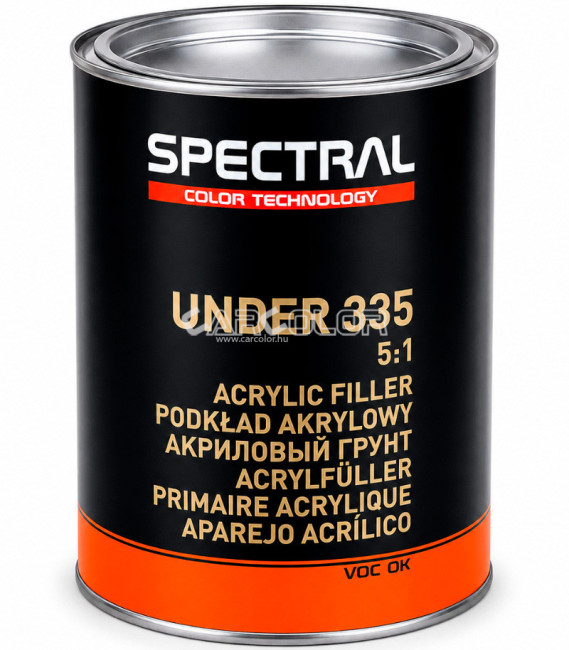

Spectral UNDER 335 2K Acrylic Filler Primer
Spectral UNDER 335 is a universal two-component acrylic filler primer designed for everyday automotive refinishing work. It offers good filling properties, easy sanding and user-friendly application, making it a reliable base for spot repairs, medium-sized repair areas and larger surface preparation jobs.
The system can be adapted to different repair processes. Depending on the amount of thinner added, it can be used as a filling version, priming version or wet-on-wet version. This flexibility helps simplify bodyshop operations, as one product can be used in several preparation processes.
Good flow allows the product to create a smooth surface, while easy sanding improves the efficiency of further preparation before topcoat application. Spectral UNDER 335 contains special anti-corrosive additives and is part of the Spectral shades of grey system, available in white, grey and black versions, with intermediate grey shades achievable by mixing.
Main benefits
- Universal two-component acrylic filler primer
- Designed for everyday refinishing work
- Good filling properties and smooth surface finish
- Easy sanding for faster surface preparation
- Can be used as a filler, primer or wet-on-wet version
- Contains special anti-corrosive additives
- Compatible with the Spectral shades of grey system
- Suitable for old paint coatings, polyester putties, steel, epoxy primers and other common substrates
- Can be adapted for plastic parts with dedicated adhesion and elasticity additives
Product information
| Product type | Two-component acrylic filler primer |
| Application | Refinishing, surface preparation, filling, priming and wet-on-wet application |
| Available shades | P1 white, P3 grey, P5 black |
| Mixable grey shades | P1, P2, P3, P4, P5 shades of grey system |
| Hardener | Spectral H 6525 Standard or Fast hardener |
| Thinner | Spectral SOLV 855 acrylic thinner, available in Fast, Standard, Slow and Extra Slow versions |
| Application temperature | Above 15 °C |
| Maximum humidity | No more than 80% |
| Equipment cleaning | Spectral SOLV 855 acrylic thinner or NC solvent |
Suitable substrates and preparation
| Substrate | Preparation |
|---|---|
| Old paint coatings, including thermoplastic paints | Degrease, dry sand with P220–P360 |
| Polyester putties | Dry sand, final sanding with P240–P320 |
| Epoxy primers | Up to 12 hours without sanding; after 12 hours, dry sand with P320 |
| Steel | Degrease, dry sand with P120 |
| Wash primers | Apply after drying |
| Plastics | Follow the plastic painting procedure; use adhesion additive if required |
| Polyester laminates | Degrease, dry sand with P280 |
Shades of grey system
The white, grey and black versions of Spectral UNDER 335 can be used to create primer shades matched to the topcoat colour. Choosing the correct primer shade may improve coverage and help reduce topcoat consumption.
| Shade | Mixing ratio |
|---|---|
| P1 | 100% P1 white + 0% P5 black |
| P2 | 90% P1 white + 10% P5 black, or 70% P1 white + 30% P3 grey |
| P3 | 70% P1 white + 30% P5 black |
| P4 | 30% P1 white + 70% P5 black, or 50% P3 grey + 50% P5 black |
| P5 | 0% P1 white + 100% P5 black |
The fillers or additives must be mixed at the recommended ratio, by weight or by volume, before adding the hardener and thinner.
Mixing ratio
| Application version | Volume ratio | Weight ratio | Viscosity DIN 4 / 20 °C |
|---|---|---|---|
| Filling version | 5 parts UNDER 335 + 1 part H 6525 hardener + 1 part SOLV 855 thinner | 100 : 13 : 12 | 40–60 s |
| Priming version | 5 parts UNDER 335 + 1 part H 6525 hardener + 2 parts SOLV 855 thinner | 100 : 13 : 24 | 25–35 s |
| Wet-on-wet version | 5 parts UNDER 335 + 1 part H 6525 hardener + 3 parts SOLV 855 thinner | 100 : 13 : 36 | 16–20 s |
VOC content
| Version | VOC content, ready-to-apply mixture |
|---|---|
| Filling version | 500 g/l |
| Priming version | 530 g/l |
| Wet-on-wet version | 570 g/l |
| VOC limit | 540 g/l |
The VOC values for the filling and priming versions apply to the ready-to-apply mixture and comply with Directive EU 2004/42/CE.
Application
| Application version | Spray gun | Nozzle | Number of coats | Dry film thickness |
|---|---|---|---|---|
| Filling / priming version | Conventional gravity-fed spray gun | 1.6–1.8 mm | 1–3 coats | Filling version: 40–60 µm / priming version: 30–50 µm |
| Wet-on-wet version | Conventional gravity-fed spray gun | 1.2–1.4 mm | 1–2 coats | 20–30 µm |
The spray equipment manufacturer’s instructions must always be followed.
Coverage and working time
| Version | Coverage | Pot life at 20 °C | Flash-off between coats |
|---|---|---|---|
| Filling version | 4.3 m²/l at 100 µm dry film thickness | 1 hour | 5–10 minutes |
| Priming version | 7.9 m²/l at 50 µm dry film thickness | 1 hour | 5–10 minutes |
| Wet-on-wet version | 11.7 m²/l at 30 µm dry film thickness | 2 hours | 5–10 minutes |
Drying and sanding
| Drying at 20 °C | 3 hours |
| Drying at 60 °C | 30 minutes |
| Infrared drying | 10–20 minutes, according to equipment manufacturer’s recommendations |
| Start of infrared drying | No sooner than 10 minutes after applying the final coat |
| Dry sanding | P360–P500 |
| Wet sanding | P600–P1000 |
Drying times always apply to the temperature of the individual painted elements.
Thinner selection by temperature
| Temperature | Recommended Spectral SOLV 855 thinner |
|---|---|
| 15–18 °C | Fast |
| 18–25 °C | Standard |
| 25–35 °C | Slow |
| Above 35 °C | Extra Slow |
Plastic parts and additives
- Spectral PLAST 775 elasticity increasing agent: for plastic elements or for increasing coating resistance to stone chipping. Recommended amount: 10–30% of the ready-to-apply primer mixture, correcting the amount of thinner accordingly.
- Spectral PLAST 825 plastic adhesion increasing agent: for improving adhesion on plastic elements, especially PP and PP mixtures. Recommended amount: 30% by volume of Component A.
Storage and shelf life
Store in a dry and cool room, away from sources of fire and heat. Avoid direct exposure to sunlight.
| Product | Shelf life at 20 °C |
|---|---|
| Spectral UNDER 335 | 24 months |
| Spectral H 6525 Standard hardener | 18 months |
| Spectral H 6525 Fast hardener | 12 months |
| Spectral SOLV 855 thinner | 24 months |
| Spectral PLAST 775 | 24 months |
| Spectral PLAST 825 | 24 months |
Safety and important notes
- Read the safety data sheet before use.
- To achieve proper application properties, the mixing ratios must be followed precisely.
- A test application is recommended before use, as different materials and working conditions may affect the final result.
- The spray equipment manufacturer’s instructions must always be followed.
- The product must be applied according to professional workshop practice.
